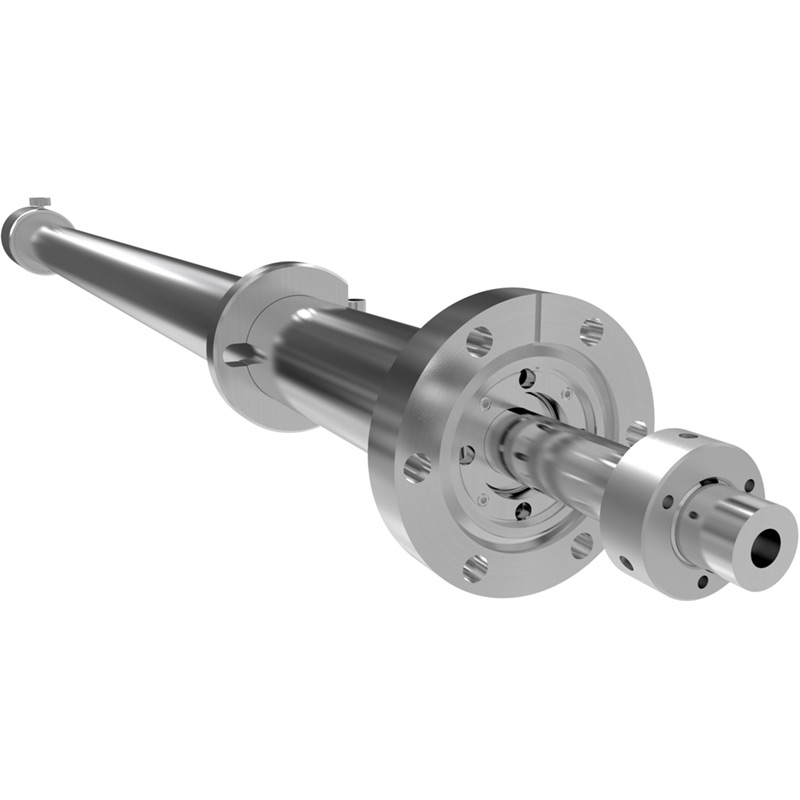

System mounting flange size up to 1219mm stroke	CF40 (2 3/4” OD) with clear holes
System mounting flange size 1524mm stroke	CF63 (4 1/2” OD) with clear holes
Magnetic linear breakaway thrust	140 N (31.5 lbs)
Available stroke range	250mm to 1219mm
Output shaft – end interface details	14.99/14.96mm with M8 tapped hole and spigot
Bakeout temperature	250 °C with motor removed
Shaft radial run out	N/A
Shaft radial deviation (linearity) over full stroke	+/- 1 degree
Maximum cantilevered load	20 Nm (177 in-lbs)
Maximum working axial load	90 N (20 lbs)
Retracted position switch – type	Bakeable micro switch wire to WD-020
Stepper motor option	AS4118L1805 with P42H (4:1) gearbox
Stepper motor – motor wiring	UTO socket wired to drawing WD-M-003
Stepper motor option – switches	bakeable limit and home switches with lemo socket wired to diagram WD-002
Stepper motor maximum linear speed	25 mm/second (ballscrew option up to 100mm/second)
Linear resolution per 1/2 step	0.00375 mm
Motor option – leadscrew pitch	6mm
DC motor option	24V dc motor with gearbox
DC motor – motor wiring	2 pin generic plug to diagram WD-010
DC motor option – switches	bakeable limit switches with lemo socket wired to diagram 11-6-04
DC motor maximum linear speed	15 mm/second
DC motor gearbox type and ratio	planetary 35:1
Motor option – leadscrew pitch	6mm

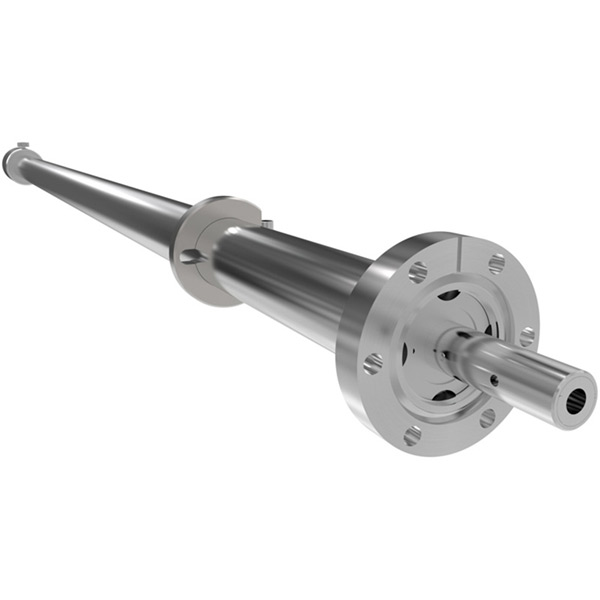

System mounting flange size up to 1219mm stroke	CF40 (2 3/4”) with clear holes
System mounting flange size 1524mm stroke	CF63 (4 1/2”) with clear holes Magnetic rotary
Magnetic rotary breakaway torque	4Nm (35 in-lbs)
Magnetic linear breakaway thrust	140N (31.5 lbs)
Available stroke range	304mm to 1524mm
Output shaft – end interface details	15.99/15.88mm with M8 tapped hole
Bakeout temperature	250 °C with motor removed
Shaft radial run out	+/- 0.5mm
Shaft radial deviation (linearity) over full stroke	N/A
Maximum cantilevered load	20 Nm (177 in-lbs)
Maximum working axial load	90 N (20 lbs)
Retracted position switch – type	Bakeable micro switch wire to WD-020

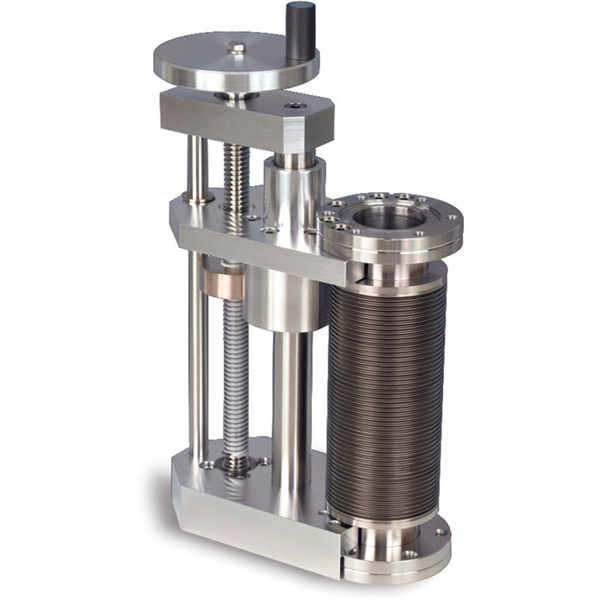

Travelling flange size	FC38 (2-3/4”) metric tapped straddled
LSM fixed flange size	FC38 (2-3/4”) metric tapped straddled
HSLM fixed flange size	FC38 (2-3/4”) clear holes straddled
Stroke range	25 to 300 mm
Clear bore	38 mm
Leadscrew pitch	2.54mm (0.1”)
Max axial load on travelling flange	150N and 50N Pneumatic option
Maximum cantilevered moment	10 Nm
Flange alignment under vacuum	2 mrad (eg 2mm at 1m from travelling flange)
Linear scale option – resolution	1mm engraved scale or 0.01mm DLA option
Bakeout temperature	250 °C with motor/pneumatic cylinder /DLA/ linear potentiometer removed
Linear encoder option – standard resolution	Renishaw LM10 with 10 micron resolution
Linear encoder option – upgraded resolution	Upgrade to 1 micron resolution
Linear encoder option – encoder repeatability	Better than unit of resolution in same direction
Pneumatic option – cylinder bore	32 mm
Pneumatic option – cylinder fitting	6mm tube push fit
Pneumatic option – cylinder switch	5-24V 2 wire reed switch
Pneumatic option – max linear speed	25mm / second
Stepper motor option	23 frame 8 wires 3A / phase
Standard stepper option – motor wiring	Flying leads
Standard stepper motor – switches	bakeable limit switches only not wired
Upgrade stepper motor – motor wiring	lemo socket to diagram 11-1-25
Upgrade stepper motor option – switches	bakeable limit and home switches with lemo socket wired to diagram WD-002
Stepper motor maximum linear speed	2.54 mm/second
Linear resolution per 1/2 step	0.000254 mm
DC motor option	24V dc brushed motor
DC motor option – motor wiring	2 pin generic plug to diagram WD-010
DC motor switches	bakeable limit switches only not wired
Upgrade DC motor option – switches	bakeable limit switches with lemo socket wired to diagram 11-6-03
DC motor maximum linear speed	4 mm/second
Motor gearbox type and ratio	spur and 25:1
Motor gearbox backlash	1 degree
Motorised Linear backlash under vacuum	0.0071mm
