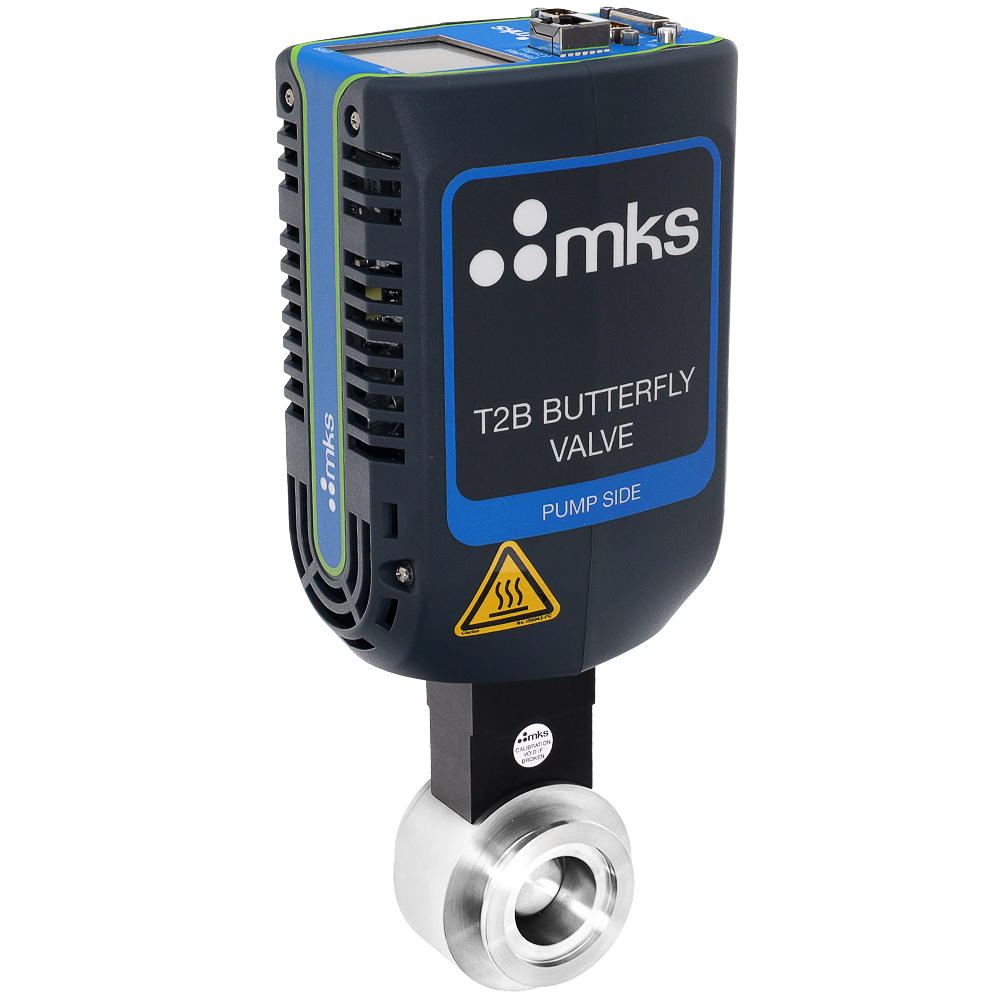

| 型號 | T2BA |
| Accuracy | 0.25% of set point, or 5mV |
| Control Range | 0.0001%-100% FS |
| Operating Temperature | |
| Motor and Electronics | 15° to 50°C |
| Valve Body | 105°C standard, 150°C and 200°C optional |
| Storage Temperature | -20° to 80°C |
| External Leak Rate | 1 e-9 atm*cc/sec |
| Valve Power | 24 VDC @ < 100 W max. 4A |
| Valve Sizes | KF40, KF50, NW63, NW80 and NW100 |
| Heatability | 105°C standard or optionally 150°C or 200°C. |

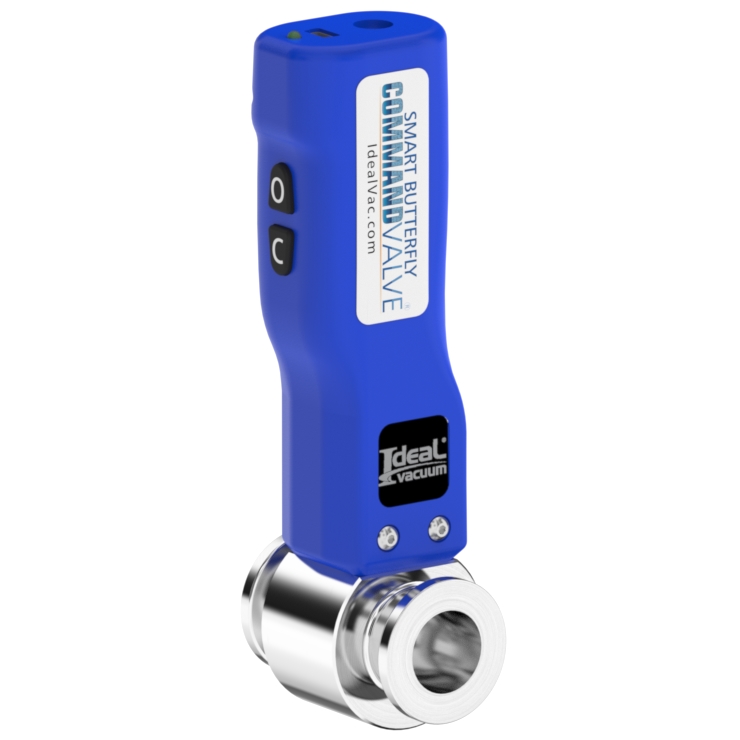

| 型號 | PRCO11 |
| 接口 | KF16,KF25,KF40,KF50 CF1.33”, CF2.12”,CF2.75”,CF3.38” |
| 最低真空度 / 最大使用壓力值 | 3×10-8 Torr / 15 psig |
| Conductance | KF16/CF1.33” : 3 liters/sec KF25/CF2.12” : 10 liters/sec KF40/CF2.75” : 30 liters/sec KF50/CF3.38” : 85 liters/sec |
| 操作溫度 | 0℃ ~ 50℃ |
| 控制方式 | 手動: 機上控制按鈕 |
| 遠端: RS-232 控制 | |
| 洩漏率 | 1×10-9 std cc/sec |
| 材質(真空內) | 本體: SS304L , 密封: 氟橡膠 |
| 輸入電壓 | 12 VDC(附AC110V to 12VDC變壓器) |
| 最大電流 | 0.47A |
